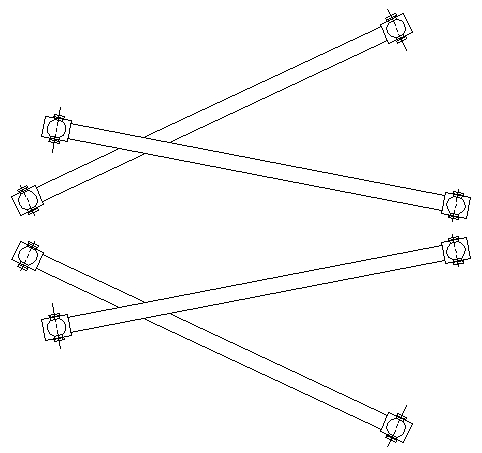

Hendrix Motorsports contracted with John (Desert Toy) James to manufacture the "James Link" exclusively for the rear suspension of our X chassis. This is the ultimate in 4 link suspension. Designed for articulation the "James Link" is superior in performance to all other link type suspensions.


Sub-frame with front and rear link mounts $995.00. Upgrade to .188 wall 4130 tubing for $85.00 more.
Link mounts for Toyota front axle housing $370.00 installed
Link mounts for Toyota rear axle housing $475.00 installed
Truss for Toyota rear housing $250.00 installed
Assembled upper links (1½x.120
DOM) $179.00 each
Assembled upper links (1 ¾x.120 DOM) $199.00 each

Assembled lower links (1¾x.250
DOM) $219.00 each
Assembled lower links (2.0x.250 DOM) $239.00 each

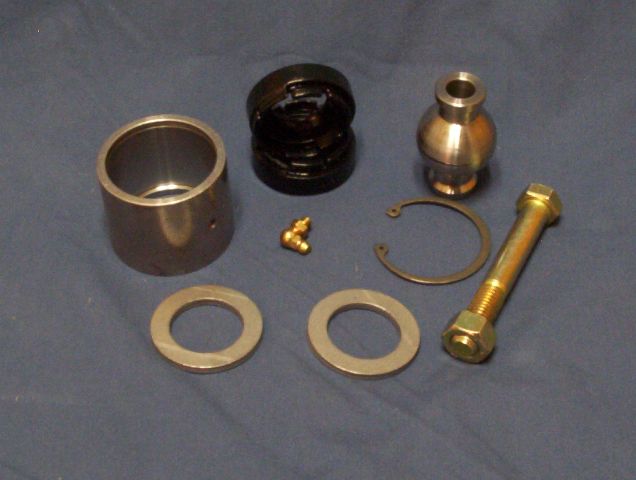

Hendrix Motorsports has come out with their own rod end called the the X-joint. $44.95 each.
Included are: 9/16 grade 8 bolt and nut, stress proof ball, DOM shell with zerk hole, extra heavy washers, poly cups with integrated grease passage and zerk fitting.

Assembled X-joint with 1"-14 or 1 1/4"-12 stud $54.95 (comes with grade 8 bolt and high temp lock nut)

Tube inserts:

1 1/4"-12, fits 2"x.250 or 1 3/4"x.120 tubing $19.95

1"-14, fits 1¾"x.250 or 1 1/2"x.120 tubing $19.95

7/8"-14, fits 1¾"x.250 or 1 1/2"x.120 tubing $11.95
