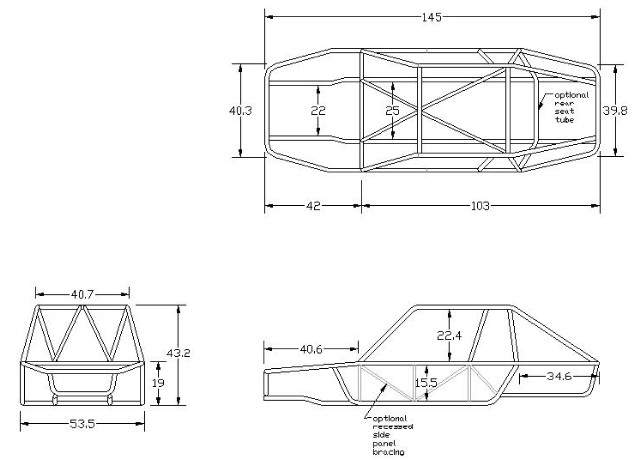

The X chassis is a stand alone full tube chassis designed for 4 link suspension and coil-over or air shocks. All Hendrix Motorsports chassis are fabricated from 1.75 x .120 wall tubing.
Computer designed space frame technology saves weight and maximizes interior room while delivering durability and strength.

X Chassis start at $2995.00 for DOM(drawn over mandrel) version. (Only the dash tube, back seat tube and fuel tank rails are HREW on DOM chassis)

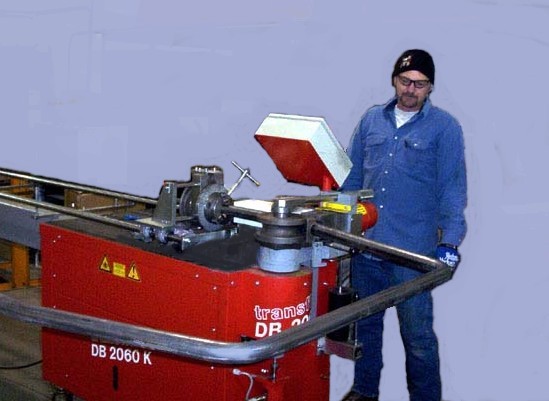

All Hendrix Motorsports chassis are CNC mandrel formed for maximum bend strength and consistency.

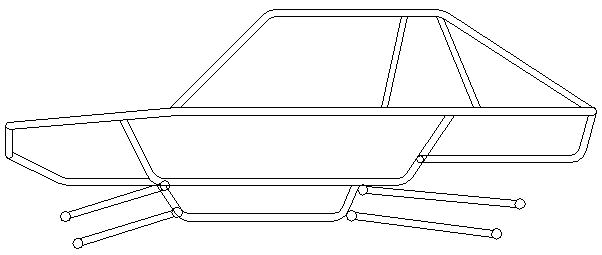

The X chassis is designed for 4-link suspension with maximum up travel front and rear.

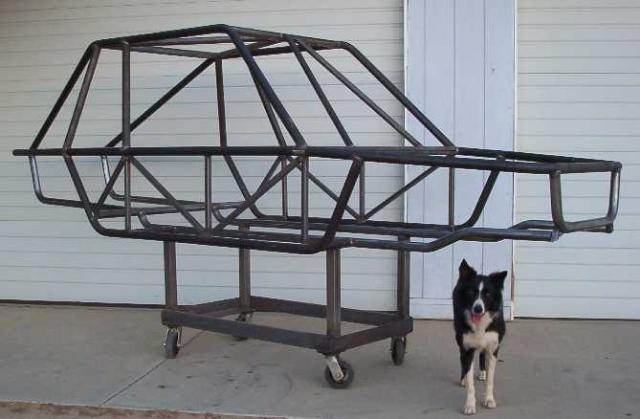

DOM X-CHASSIS with side panel bracing and grill hoop.
